500L electric heated stainless steel stirred tank / jacketed dishwashing liquid mixing tank with homogenizer

  • >=1 Sets
    $3,500.00
Model Number:
GRMT for mixing tank with homogenizer
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Barrel Volume (L):
20000
Max. Loading Volume (L):
20000
Range of Spindle Speed(r.p.m):
1 - 2800
Max. Loading Capacity:
20000
Weight (KG):
2500
Applicable Industries:
Food & Beverage Factory
Application:
Medicine Processing, Chemicals Processing, Food Processing, Liquid, cosmetic, food, beverage, chemical, medicine
Condition:
New
Mixer Type:
Agitator
Product Type:
Juice
Additional Capabilities:
Heating
Place of Origin:
Shanghai
Brand Name:
Gorun
Voltage:
220, 380
Dimension(L*W*H):
depends
Certification:
CE
Power (kW):
15
Warranty:
1 Year, 1 year
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Key Selling Points:
Energy saving
mixing tank with homogenizer:
dishwashing liquid mixing tank
HS code:
8479820090
Feature 1:
long service life
Feature 2:
Widely Used
Material:
SS304/SS316
Function:
mixing; heating; cooling etc
Working pressure:
ATM, vacuum; 1-3bar
Working temperature:
less than 200℃
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Box for mixing tank with homogenizer
Port
Shanghai port for mixing tank with homogenizer
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

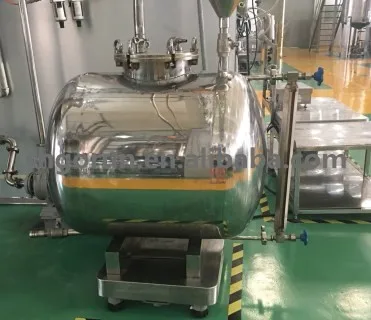

500L electric heated stainless steel stirred tank / jacketed dishwashing liquid mixing tank with homogenizer:

Applied Field:

1. Food industry:

Juice, honey, fruit jam, cheese, ketchup, mayonnaise, body food, chocolate cream, syrup etc.

2. Cosmetics industry:
Cream, shaving cream, sunscreen, lotions, essence, moisturizing cream, hand cream, etc.
3. Daily chemical industry:
Laundry detergent production, shampoo, toothpaste, liquid soap, detergent, etc.
4. Pharmaceutical industry:
Emulsion, ointment, oral syrup, oral liquid, etc.

5. Other industries: dairy industry; beverage industry; textile industry;

Stirrer/Mixer Type:

Paddle Type Agitator

Mixing speed: 0-120rpm.

Used for mixing milk etc liquid.

Scraper Agitator

Mixing speed: 0-80rpm.

Used for mayonnaise etc mixing.

Frame Agitator

Mixing speed: 0-120rpm.

Used for mixing sediment, oral liquid, etc.

Ribbon Agitator

Mixing speed: 0-20rpm.

Used for honey, jam etc mixing

Magnetic Agitator

Mixing speed: 0-800rpm

Used for pharmaceutical industry.

Mulser/Emulsifying Head

Mixing speed: 0-2800rpm

Used for water&oil mixing.

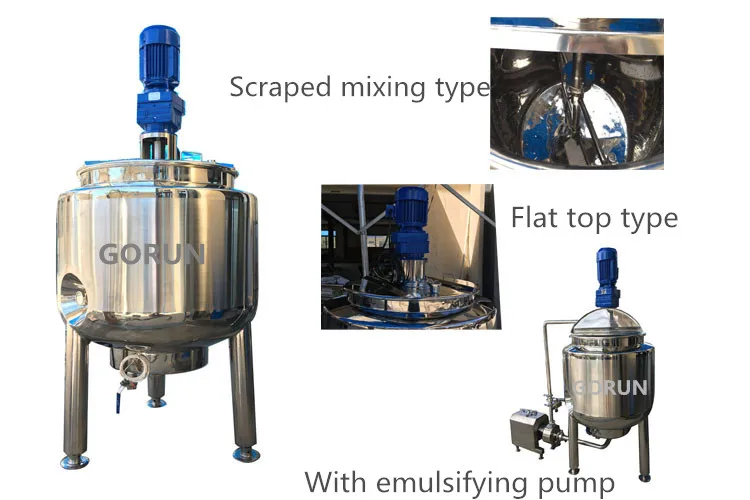

Cuztomized Mixing Tank:

Stainless Steel Mixing Tank:
Profile/Type
Single layer
double layers
Three layers
Structure
one layer
inlayer+insulation layer
inlayer+jacket+insulation
Cooling way
no
coiled pipe or not need
water/ coiled pipe/refrigeration unit or not need
Heating way
no
electric/coiled pipe or not need
electric/steam/coiled pipe or not need
Material
SS304/SS316
Volume
50L-20T
Pressure
Vacuum-1Mpa
Agitator type (See below)
Paddle type; scrape type; anchor type; frame type; mulser; emulsification head
Accessories
1. manhole; 2. wheels; 3. cleaning ball; 4. liquid level gauge; 5. pressure gauge; 6. temperature gauge; 7.sight glass; 8. platform and ladder; 9. valves; 10. pipes;
Control content(optional)
1. The start and stop of pump; 2. Temperature display and control; 3. Pressure display and control.( See below, get more details)
Main Products

1. Filter Cartridge: PP; PES; PVDF; PTFE; SS etc.
2. Filter Housing: cartridge filter; bag filter; plate frame filter; rotary filter etc.
3. Tube&shell heat exchanger: Used for heat exchange between cold and hot medium.
4. Stainless steel tank: Mixing tank, storage tank; beer fermentation tank; jacketed kettle etc.
5. Water treatment system: Used for tap water, well water etc fresh water treatment filtration.
6. Customized system: We will provide and design according to customers' production technology requests or specific drawing etc.

Our company

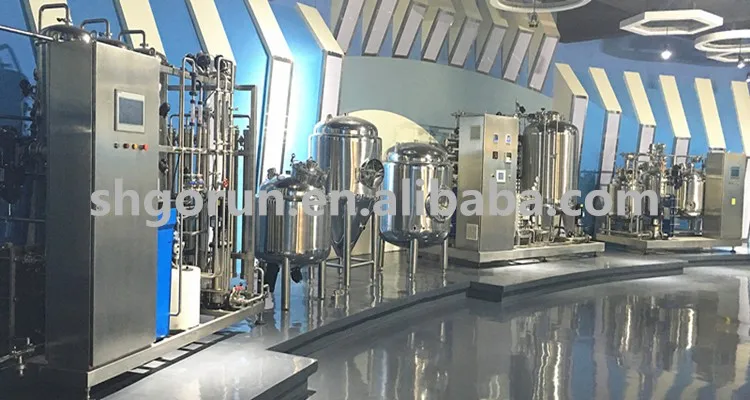

Show room

Shanghai Gorun Machinery Technology Co., Ltd derived from Shanghai Geshi Fluid Equipment Technology Co., Ltd, which is found in1993.

Company has nearly 3000 square meters fully closed filter production workshop which meet GMP requirements

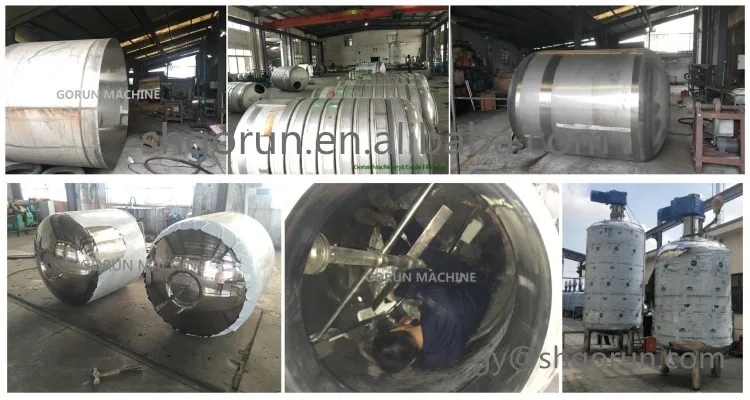

Our Workshop:

Tank production workshop

Filter cartridge (aseptic production workshop)

Our Exhibition:

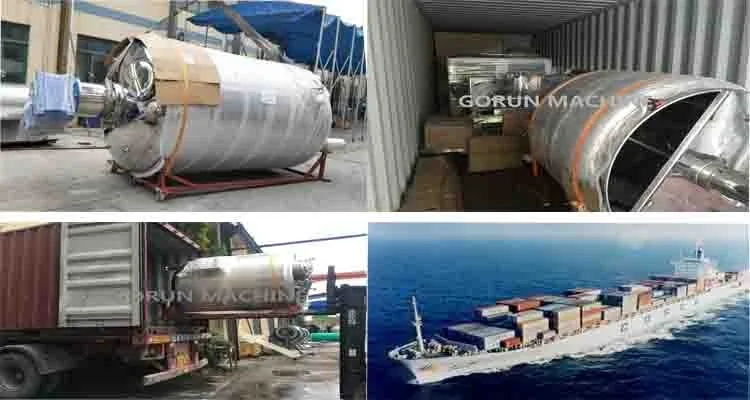

Packing&delivery

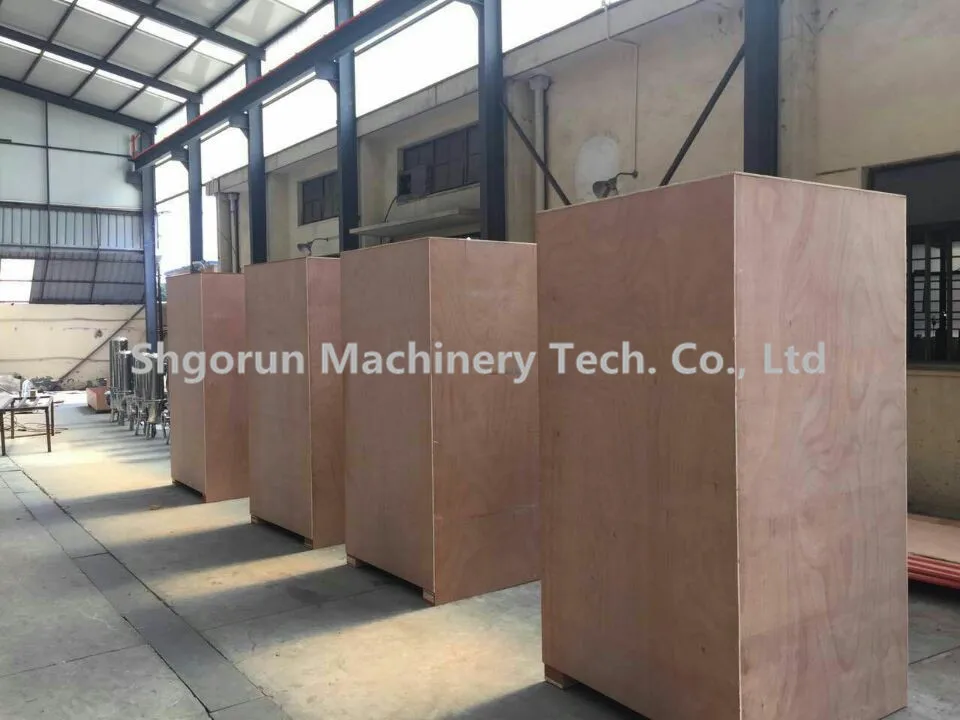

Packing
50L-1500L volume: plywood or wooden box package.
More than 1500L volume: support package.

Delivery
1. By sea: Container/LCL
2. By air: Flight/Express(UPS、FEDEX 、DHL、TNT, EMS, ARAMEX etc)
3. By road

Our Service

Our mission: Production and provide best quality products to win trust from our customer.

                       Establish win-win relationship with all customers.

To be continued...

See below

Do best products, provide best service.

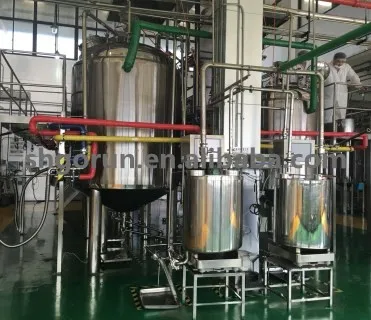

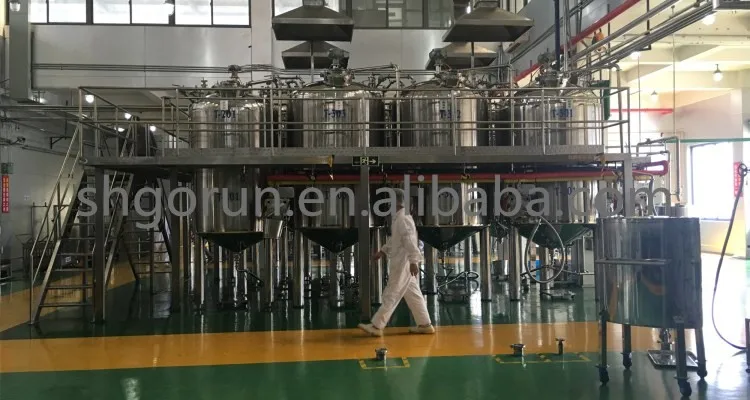

Project Cases

Case 1:  Seasoning Production Factory:

1. We have professional engineers and high-quality sales team who can provide high-efficiency service to you.
2. We will send test, running video and operation manual to you teach you how to use, fix, maintain this machine.
3. Any operation issues when you receive equipment, please send message or take some photos to us. We will deal with it within 24 hours.

Case 2: Pharmaceutical Factory:

GORUN devote to design and provide single equipment, production line for our clients.
All project design based on spatial layout, production industry and clients' specific requirements for machine production automation.

FAQ
Q: Are you a manufacturer or a trader?
We're a manufacturer with more than 20 years professional production experience.
Q: Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.
Q: What kind of your packaging ?
Neutral plywood or wooden box packaging or according to customer’s requirements.
Q: Can you provide us the design drawing?
Yeah, of course, we will provide you the drawing after you payment or prepaid.
Q: How long is your delivery time?
Normally 10-45days after payment, and we promise we will delivery as soon as we can.
