Low pressure stainless steel honey bag filter

FOB Reference Price:Get Latest Price
$620.00 - $2,000.00 / Sets | 1 Set/Sets bag filter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Gorun
Model Number:
GRD-N
Type:
Mesh Filter Bag
Usage:
Liquid Filter
Material Of Bag:
Fiberglass
honey bag filter:
stainless steel bag filter
HS code:
8421299090
Feature1:
Eco-friendly
Feature2:
Customized
Material:
SS304/316
Shape:
Round
Warranty:
1year(except consumable)
Other name:
liquid filter
Certificate:
ISO, TUV, CE, SGS, PED, ASME
Application:
beverage, food, alcohol etc
Supply Ability
Supply Ability:
500 Set/Sets per Month bag filter
Packaging & Delivery
Packaging Details
plywood or wooden box(HS code: 8421299090)
Port
Shanghai, Qingdao, Tianjin, Lianyungang, Ningbo, Shantou, Xiamen, Guangzhou
Lead Time :
5-45 days after payment
Video Description
Product Description

Low pressure stainless steel honey bag filter

Features of SS bag filter

Structure: This series filter is mainly consists of filtration cylinder, cylinder cover and fast open structure, stainless steel strengthen filtration bag etc. It has below advantages:

1. The effective filtration area;

2. A wide range of uses, can be used for coarse or fine filter;

3. High filtration precision, applicable to any fine particulate cargo suspended;

4. The operation is simple and convenient, covers an area of small, easy to install;
5. The unit filter area of the treatment of large flow, low resistance, high filtration efficiency.


Three different types for select

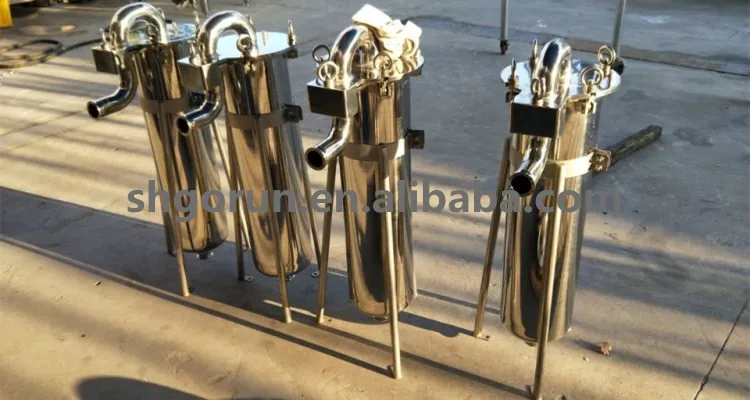

Single bag side-inlet filter

★ Side inlet and outlet or bottom outlet.
☆ Spring pressure ring pressed bag mo-uth, good sealing effective, economical.
★ Easy assembly and disassembly.

Single bag top-inlet filter

★ Top inklet and bottom outlet.
☆ Flat cap pressed bag mouth, rational
distribution of the feed, less residual.
★ Easy assembly and disassembly.

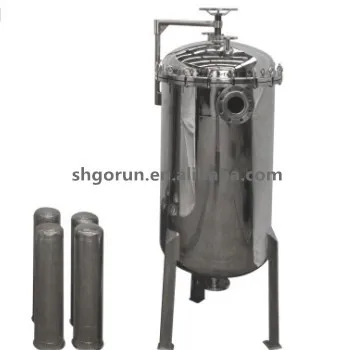

Multi-bag side-inlet filter

★ Side inlet and outlet or bottom outlet
(3-20 bags).
☆ Piping structure and rocking arm
styles are optional.

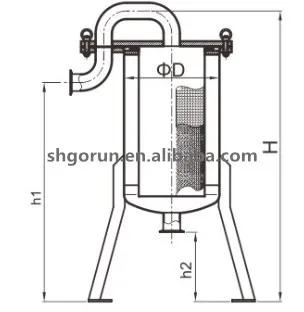

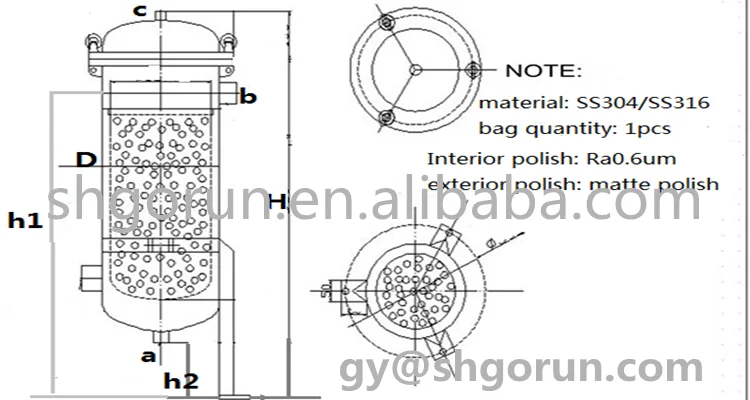

Specifications table

Model
D
a
b
H
h1
h2
SGD-C180400-1FF
219
32
32
1000
820
250
SGD-C180800-1FF
219
50
50
1370
1190
250
SGD-D180400-1FF
250
32
32
840
650
250
SGD-D180800-1FF
250
50
50
1210
1020
250
SGD-C180800-3FF
450
125
125
1820
1400
300
SGD-C180800-5FF
600
150
150
1930
1470
400
SGD-C180800-6FF
650
200
200
2100
1560
400
SGD-C300800-1FF
350
65
65
1550
1270
250
Model selection of filter bag
No
Diameter
(mm)
Height
(mm)
Volume
(L)
1
180
430
8
2
180
820
17.5
3
100
230
1.5
4
100
380
2.5
5
150
510
8

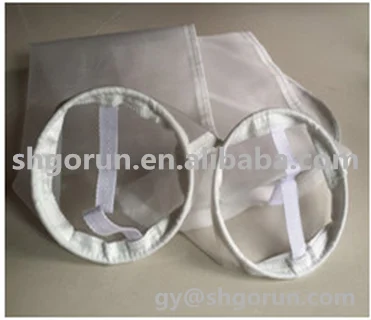

Type
filter bag/filter basket
Material
PE,  PP,  Nylon, Stainless steel
Refer to following form select filter model(customizable)

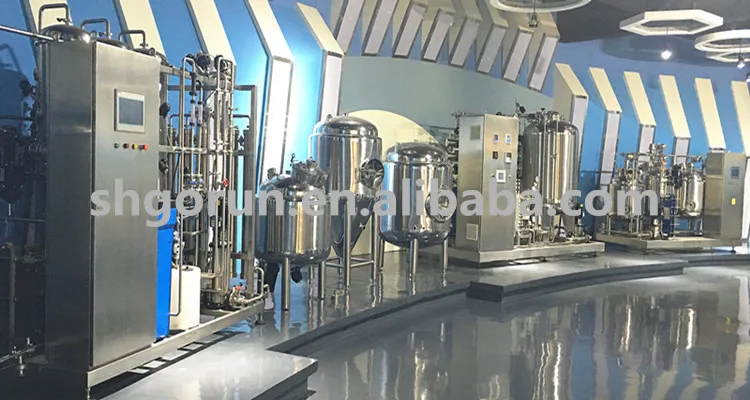

Company profile

Shanghai Gorun Machinery Technology Co., Ltd derived from Shanghai Geshi Fluid Equipment Technology Co., Ltd, which is found in1993.
There is a professional workshop with 6000 square meters area speacially to manufacture our equipments. Core product is certficated by authority third-party, meet GMP and America FDA standard.
Our products:
1. Stainless steel filter series                                                           2. Filter cartridge series
3. Water treatment equipment                                                         4. Stainless steel tank series
5. CIP cleaning system                                                                      6. Tube&shell heat exchanger
6. Santitary pumps and various sanitary accessories

Our filter series

Filter filter

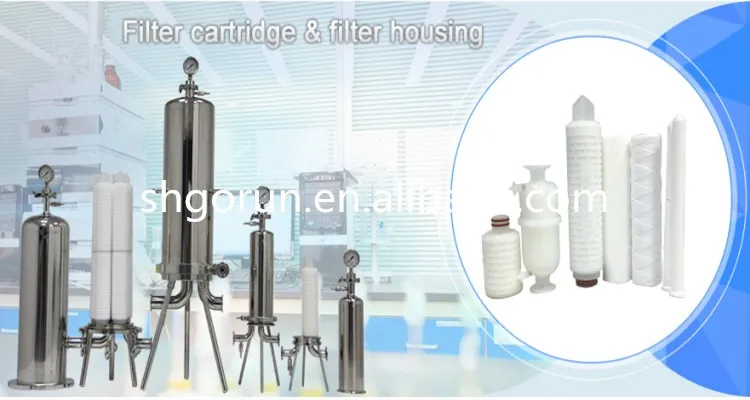

This series is broadly for liquid precision filteration and sterilization.

Plate frame filter

This series widely used for beer, wine, yeast cell, suspension liquid etc liquid filtration.

Pipelined filter

This series filter also called breather. It is used in air etc sterilization filtration.

Other products

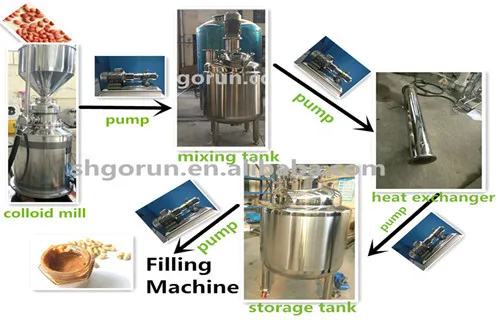

Stainless steel tank series

(Tank series; colloid mill; shell&tube heat exchanger; pump)

Stainless steel equipment series

(Water treatment system, CIP cleaning system)

Packing & Delivery

Packing

Plywood or wooden box

Delivery

1. By sea: Container/LCL
2. By air: Flight/Express(UPS、FEDEX 、DHL、TNT, EMS, ARAMEX etc)
3. By road

FAQ

Q: Can you provide us the detailed drawing?
Yeah, of course, we will provide you the drawing after you payment or prepaid.

Q: Are you a manufacturer or a trader?

We're a manufacturer with more than 20 years professional production experience.

Q: Can you accept OEM?

Yes, absolutely we can, and we can production totally according to your design standard.

Q: How about your payment terms?

If the payment more than USD1500, in favour of 30%T/T in advance, the rest before delivery.
If the payment less than USD1500, payment 100% by T/T.
Besides these, if you want to payment by L/C, western union, paypal, cash etc are acceptable.

Q: How about the delivery time?
Normally 10-45days after payment, and we promise we will delivery as soon as we can.
